EXeCWB-EXeCeWB Water-proof Screen Power Cable with Copper Conductors and PE Sheath 8.7/15kV Medium Voltage

  • 1
  • 2

Transport Package : Wooden Steel Drum

Sheath : PE

Model Number : EXeCWB

Packaging Details : Wooden Drum

Sheath Color : Red

Insulation : XLPE

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Hs Code : 8544492100

Brand Name : Minfeng

MOQ : 100m

Temperature : 90°C

Place of Origin : China

Certification : ISO,CE,IEC,TUV,KEMA

Price : 0.1-5

Conductor Material : Copper

Delivery Time : 5-8 Days

Contact Now

EXeCWB-EXeCeWB Water-proof Screen Cable Power Cables with Copper Conductors and PE Sheath 8.7/15kV 12/20kV 18/30kV 20.8/36kV
Product Overview

Power cables with copper conductors and PE sheath designed for industrial applications with water-proof capabilities.

EXeCWB-EXeCeWB Water-proof Screen Power Cable with Copper Conductors and PE Sheath 8.7/15kV Medium Voltage
Technical Specifications
Rated Voltage8.7/15kV 12/20kV 18/30kV 20.8/36kV
Size16-35mm²
Conductor MaterialCopper
Insulation MaterialXLPE
Working Temperature90°C
JacketPE
ApplicationIndustrial
TypeMedium Voltage
Place of OriginHebei, China
Model NumberEXeCWB
Brand NameMinfeng
StandardNBN HD 620 / 10B-A
Applications

Power cables with copper conductors and PE sheath. EXeCWB cables are provided with longitudinal watertightness at the screen level. EXeCeWB cables include transversal watertightness over the screen.

  • In cable channel
  • In tube
  • With or without protection
  • In industry
  • In open air

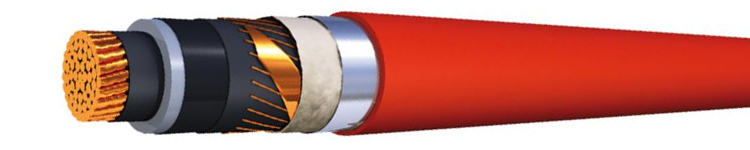

Cable Design
  1. Copper conductor
  2. Semi-conducting XLPE extruded conductor screen
  3. XLPE extruded insulation
  4. Semi-conducting XLPE extruded conductor screen
  5. Semi-conducting swelling tape
  6. Copper wires screen + counter helix copper tape
  7. Swelling tape
  8. Aluminium tape bonded to the PE sheath (only for EXeCeWB cables)
  9. Red PE oversheath
EXeCWB-EXeCeWB Water-proof Screen Power Cable with Copper Conductors and PE Sheath 8.7/15kV Medium Voltage
